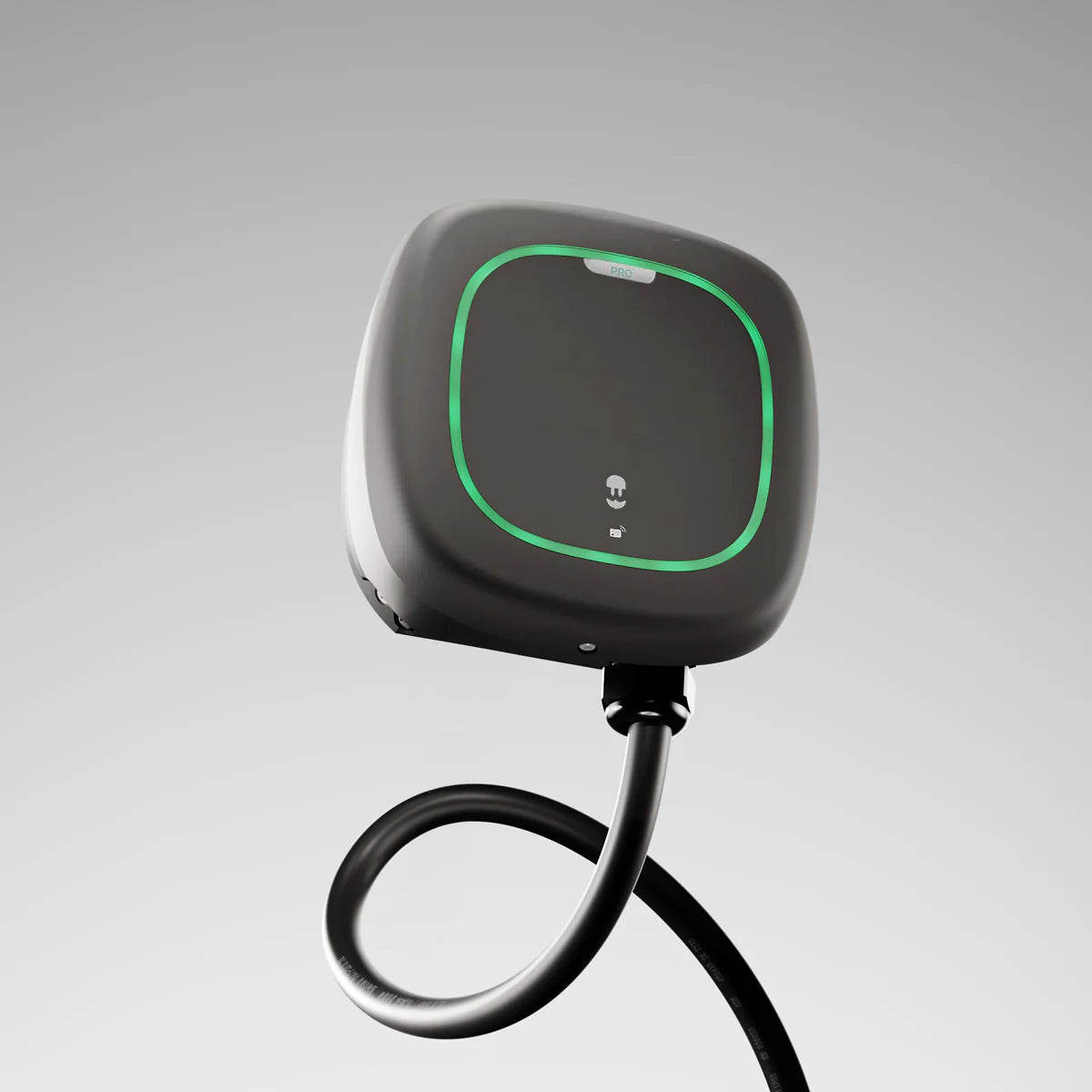

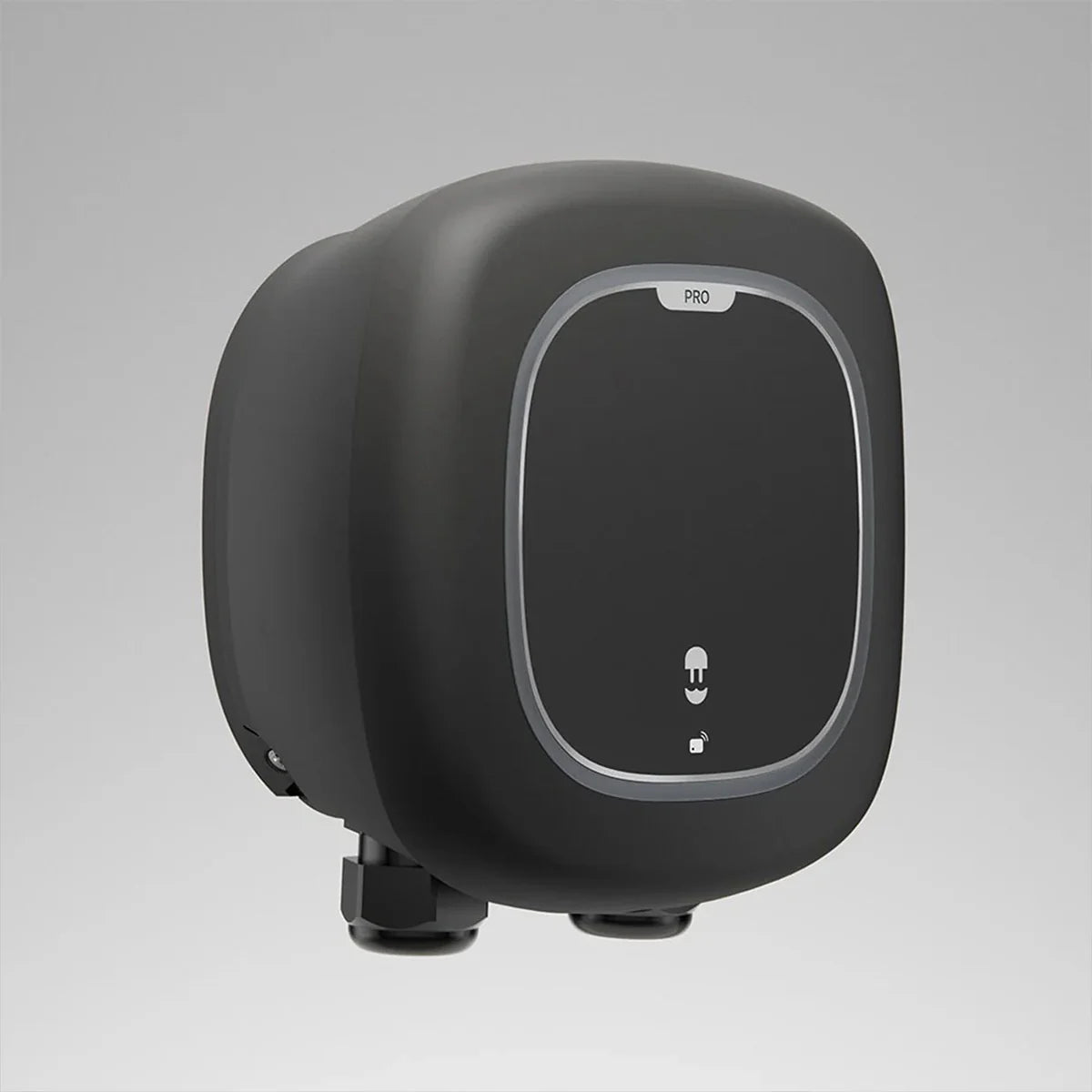

Pulsar Pro

The Pulsar Pro combines a compact design with powerful performance, making it an ideal charging solution for semi-commercial locations. Designed for quick and easy installation, Pulsar Pro is compatible with most electric vehicles available on the market today.

Charging your EV becomes simple and efficient with the integrated myWallbox App, which allows you to control and monitor your charger directly from your smart device via WiFi or Bluetooth.

Key Features

• Fast Charging Performance – Delivers up to 48 Amps (11.5 kW) for faster charging.

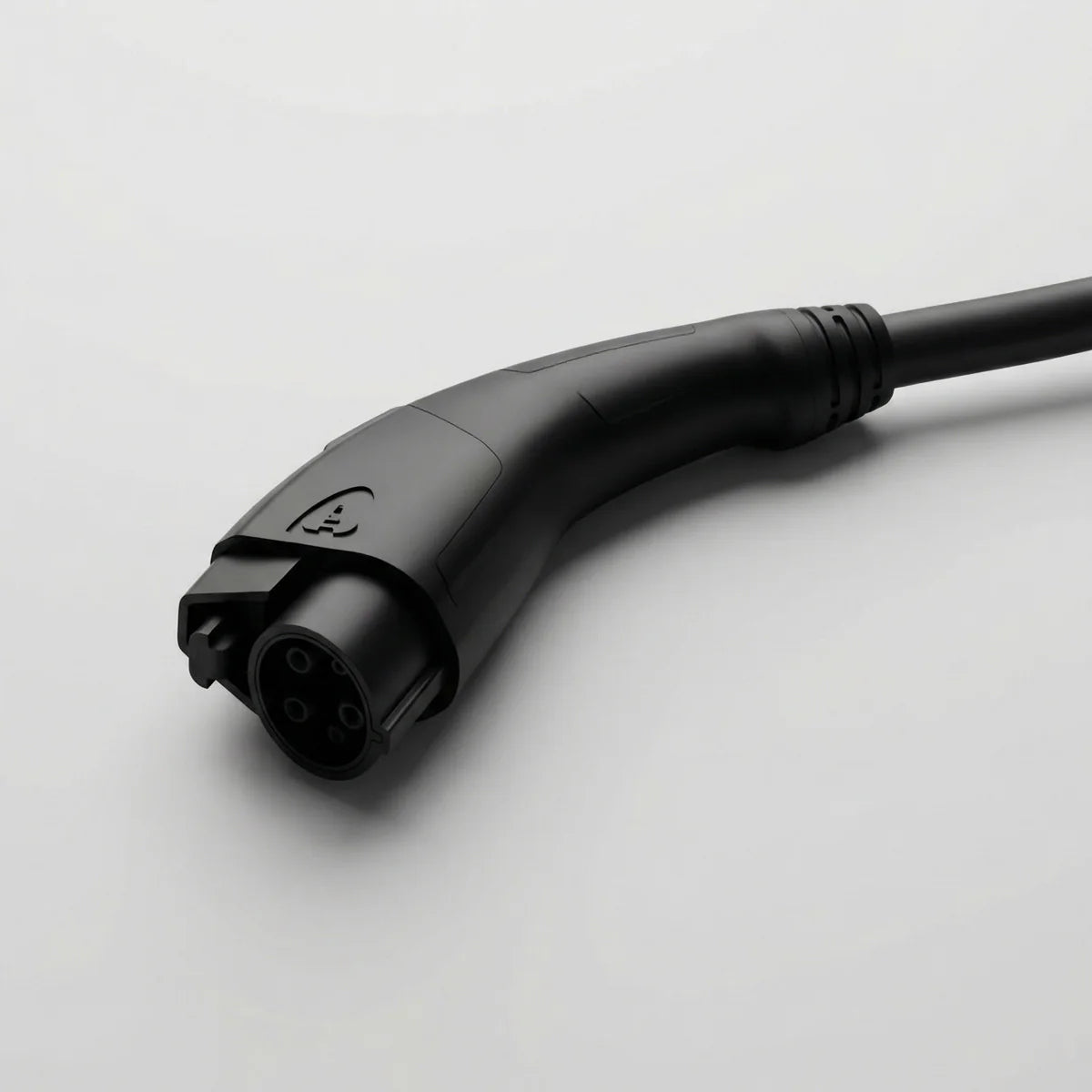

• Universal Compatibility – Equipped with a Type 1 (J1772) connector compatible with most EVs.

• Smart Control – Manage and monitor your charger using the myWallbox App.

• Flexible Installation – Supports both NEMA 14-50 plug and hardwired installation.

• Durable Design – Weather-resistant enclosure suitable for indoor and outdoor use.

Technical Specifications

• Connector Type: Type 1 (J1772)

• Maximum Current: 48 Amps | 11.5 kW

• Rated Voltage: 240 / 208V (Level 2)

• Input Voltage: NEMA 14-50 or Hardwired

• Connectivity: Bluetooth

• Cable Length: 25 ft (7.62 m)

• Dimensions: 7.8" × 7.9" × 3.9" (198.12 mm × 200.66 mm × 99.06 mm)

• Color: Matte Black

Safety & Certifications

• Energy Star Certified

• Electrical Safety Certification: UL 2594

• EMC Compliance: FCC Part 15 Class B

• Environmental Rating: NEMA Type 4 (per UL 50E)

• Additional Compliance: CAN ICES-003B / NMB-003B

Note: DC Leakage protection is not included. Add a Wallbox Power Meter to unlock the full potential.

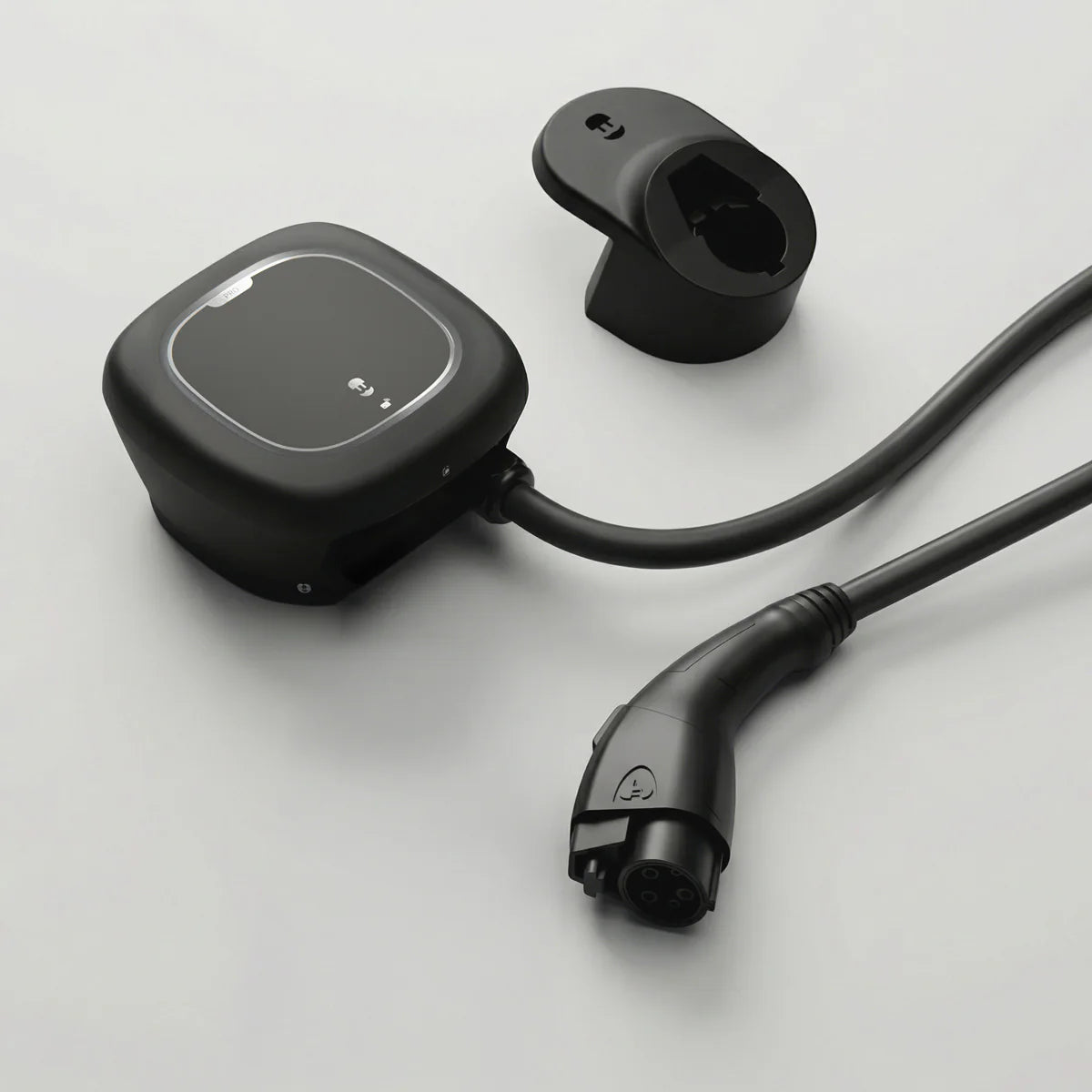

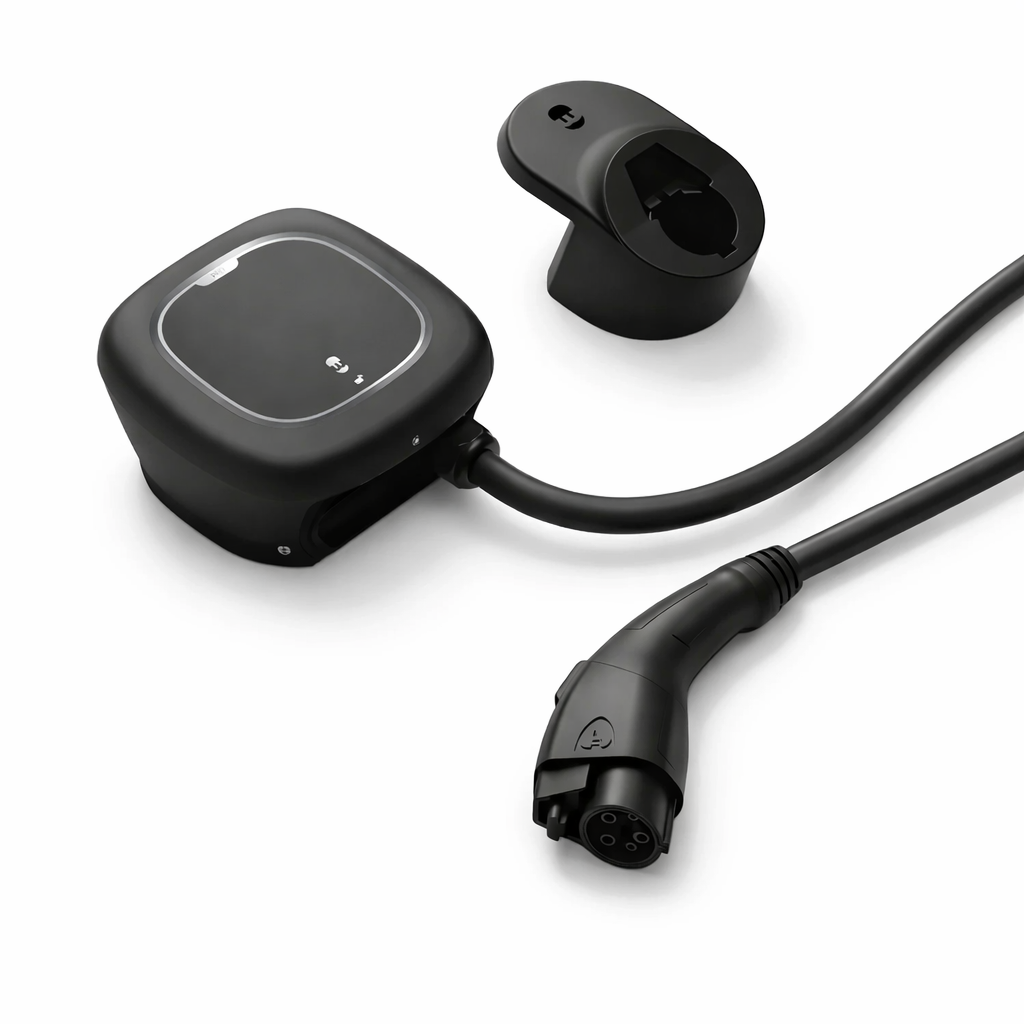

What’s Included

• EV Charger

• 25-Foot Charging Cable

• SAE J1772 Type 1 Connector

• Holster Accessory

• Mounting Hardware

• Product Manual Documentation
